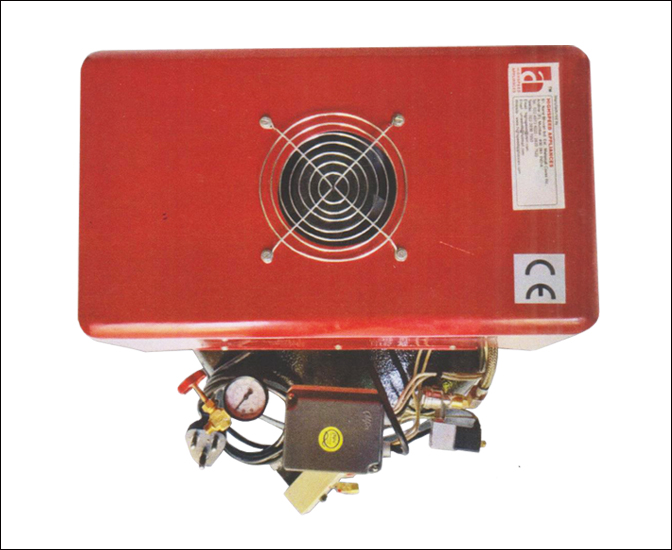

1 HP Low Noise Oil Free Compressor
Oil Free Piston Compressor Model HS-LN-1

Technical Specifications :

» Max. Air Pressure - 120 PSI (8.0 Kg. / cm²)

» Free Air Displacement 130 LMP (4.6 C.F.M.)

» Electrical - 1H.P. 230V, 1Ph - 50Hz

» RPM - 1440 AMP 3

Performance Chart :

Compressor Performance With 20 LTR. Receiver
PSIG Vs LPM
PSIG	0	20	40	60	80
LPM	100	85	75	65	55

Physical Dimensions Of Compressor With 20 LTRS. Air Receiver :-

Height - 26" Width - 17" Length - 17" Weight - 40KGS
